kOmegaSSTLM validation

The kOmegaSSTLM model (Langtry and Menter 2009) is from standard OpenFOAM distribution.

Coupland T3A-T3C5 cases

Results for the Coupland T3A-T3C5 showed bellow are obtained with medium mesh resolution.

T3A case

See description.

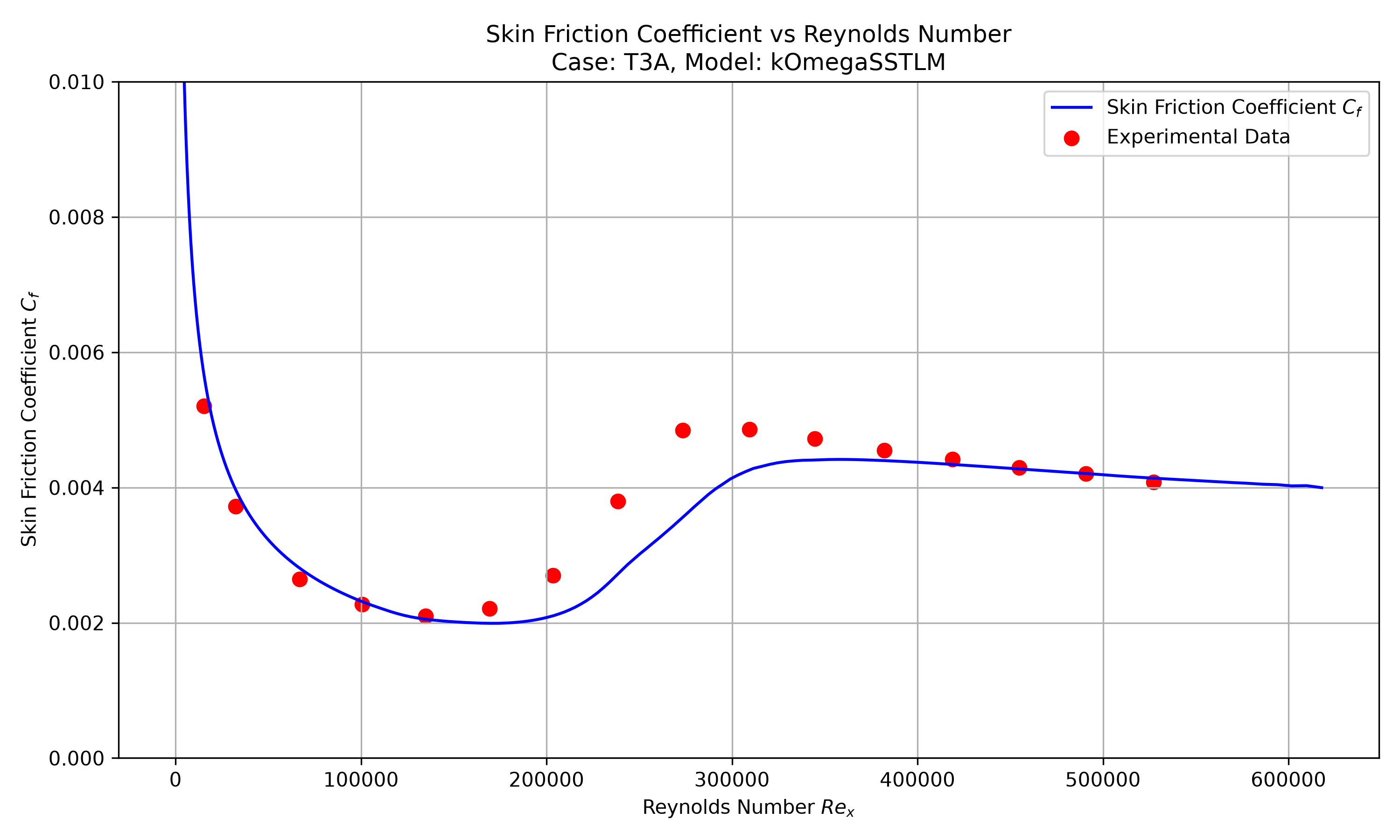

Skin friction coefficient

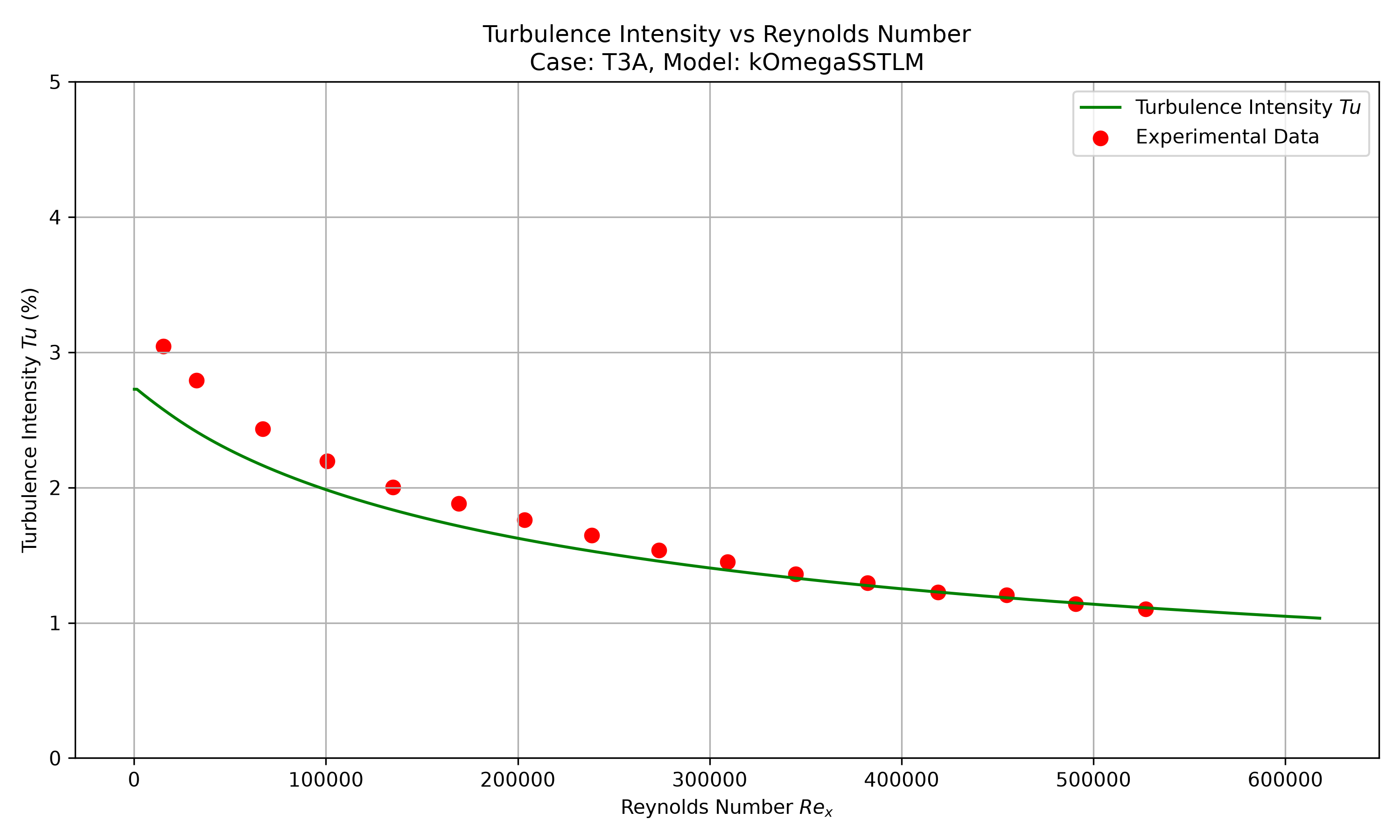

Turbulence intensity

T3A- case

See description.

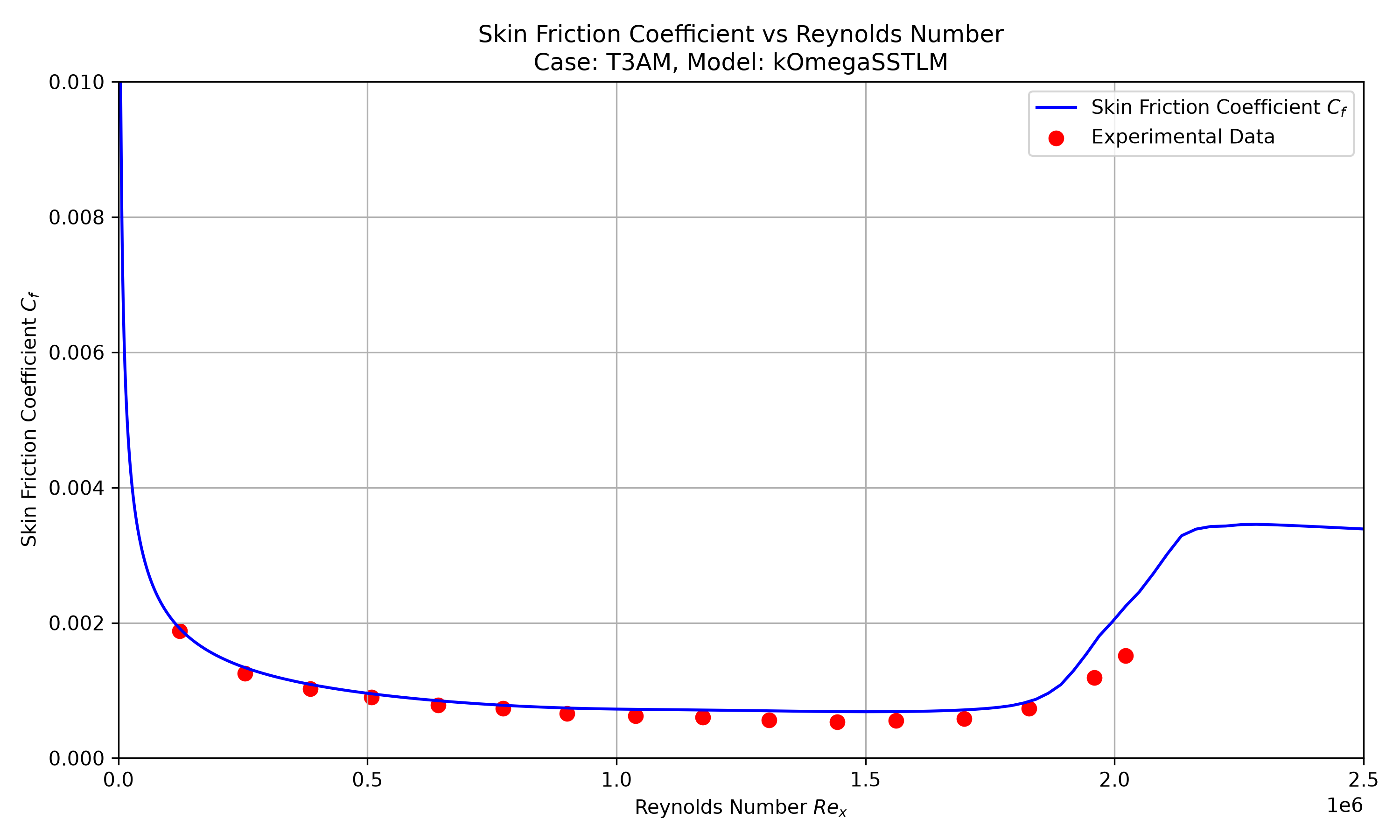

Skin friction coefficient

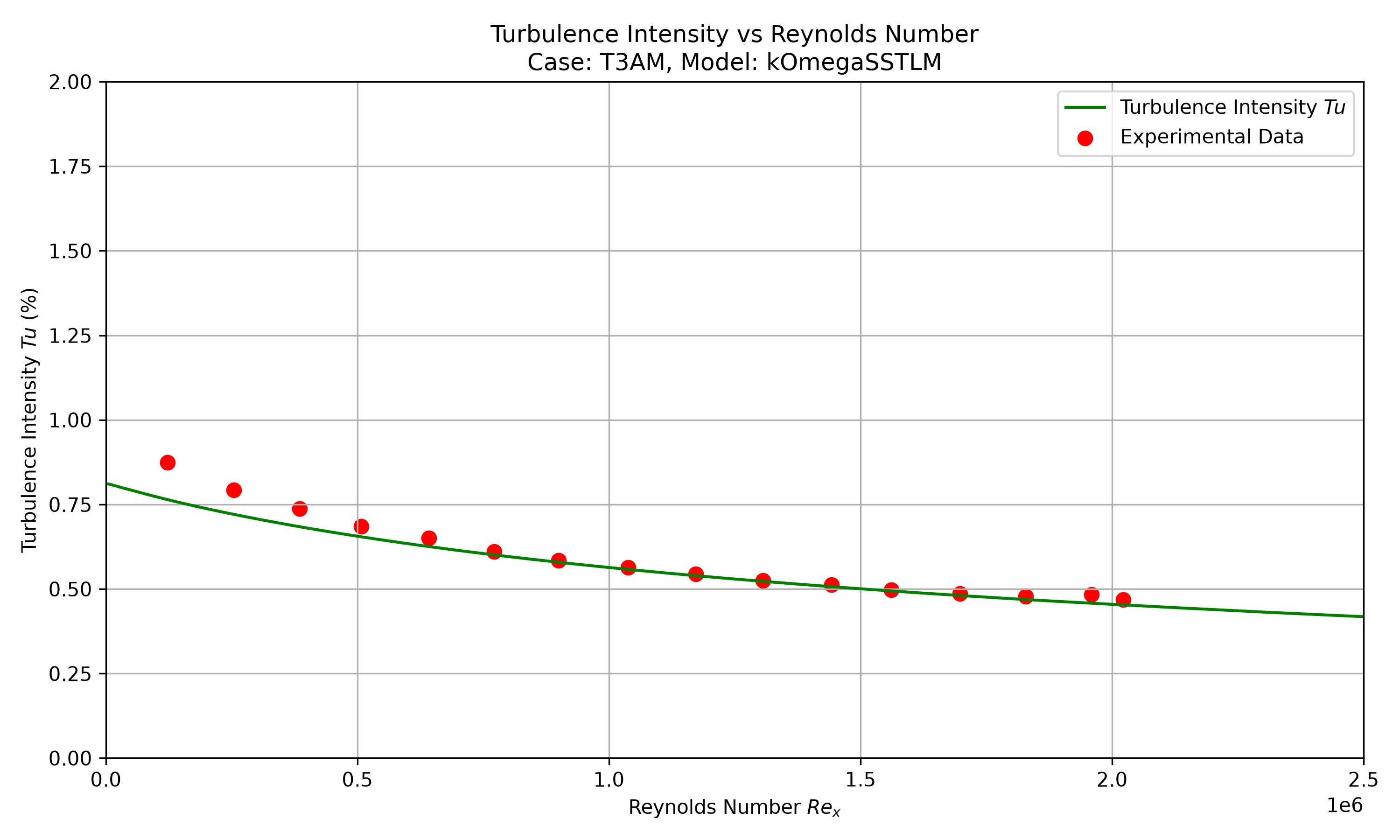

Turbulence intensity

T3B case

See description.

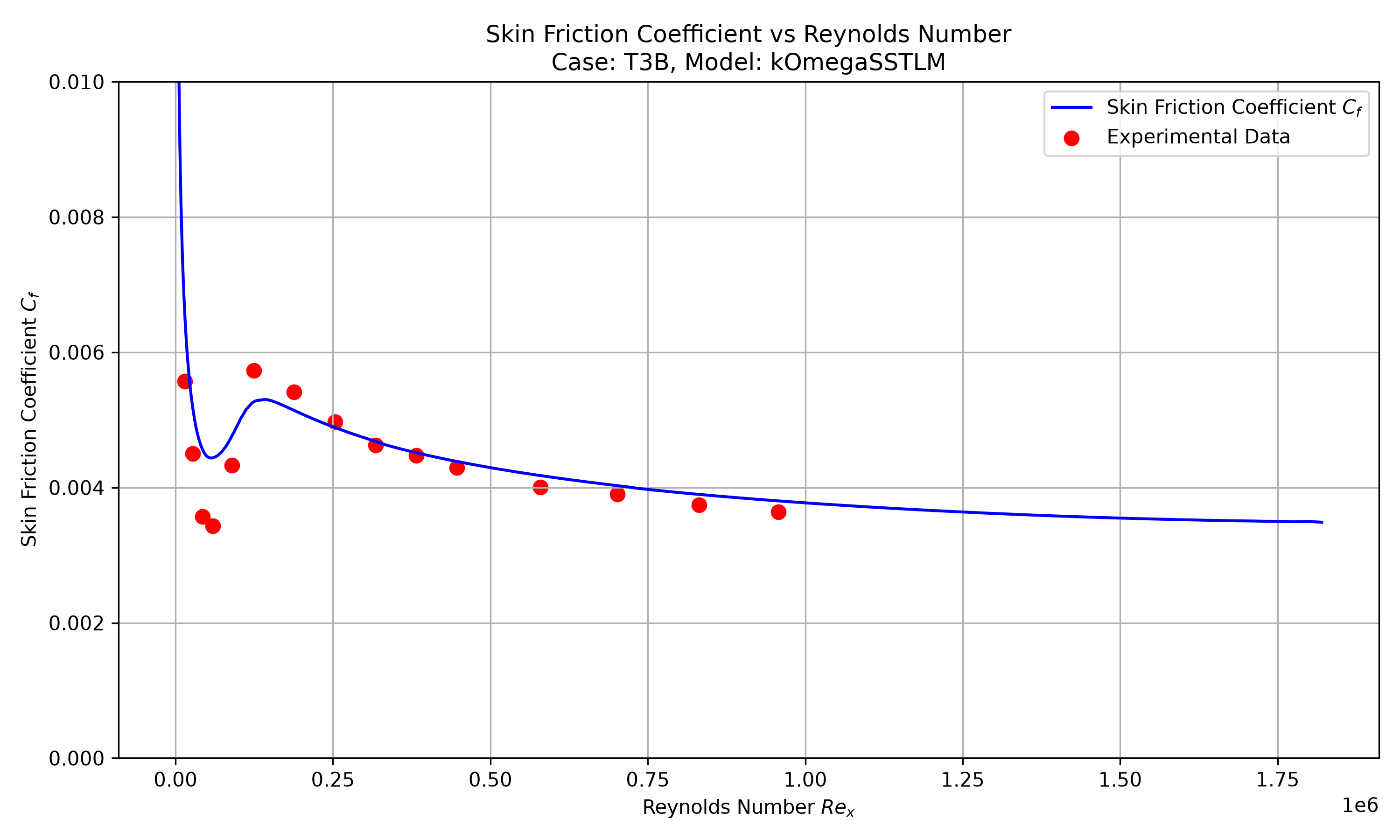

Skin friction coefficient

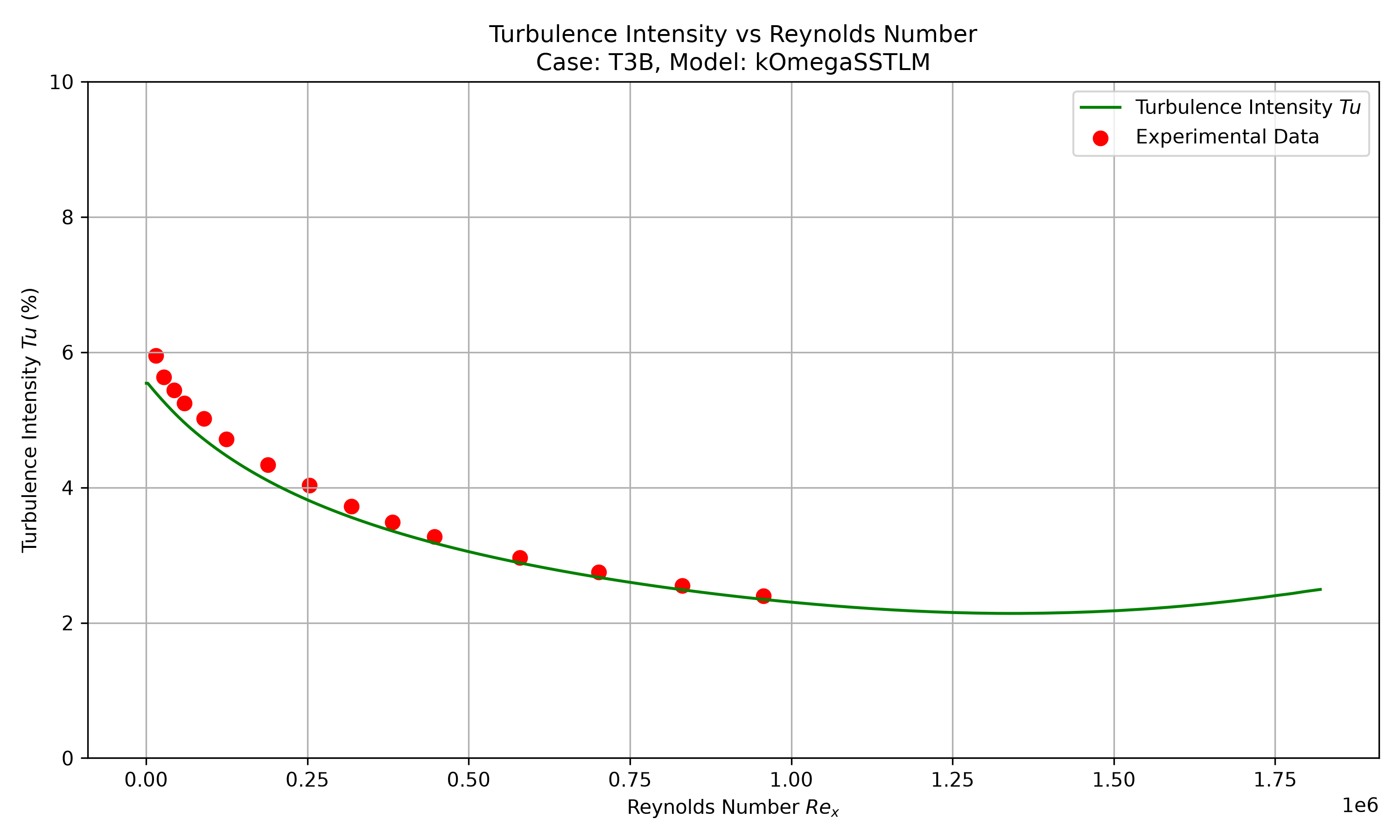

Turbulence intensity

T3C1 case

See description.

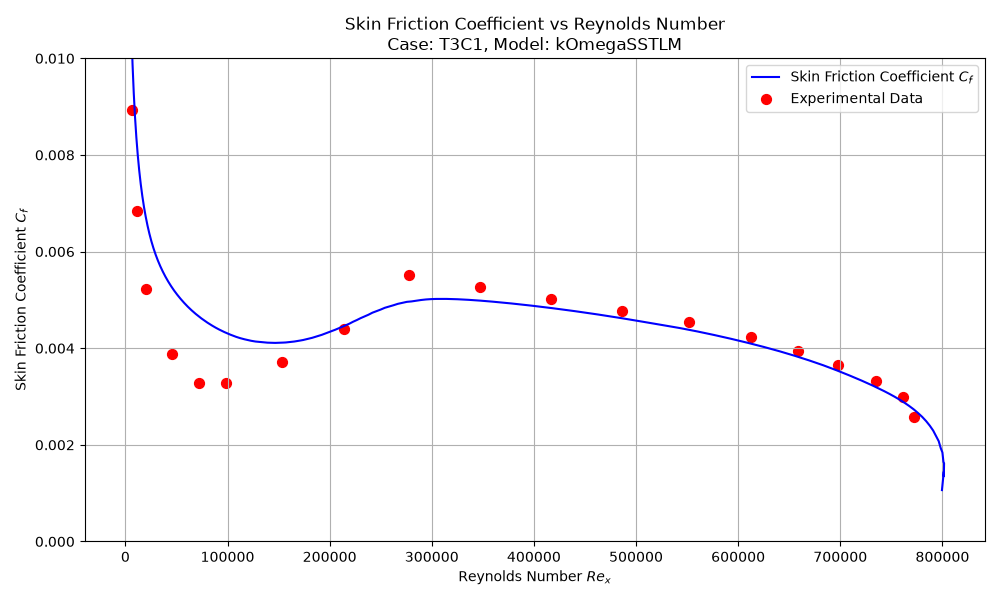

Skin friction coefficient

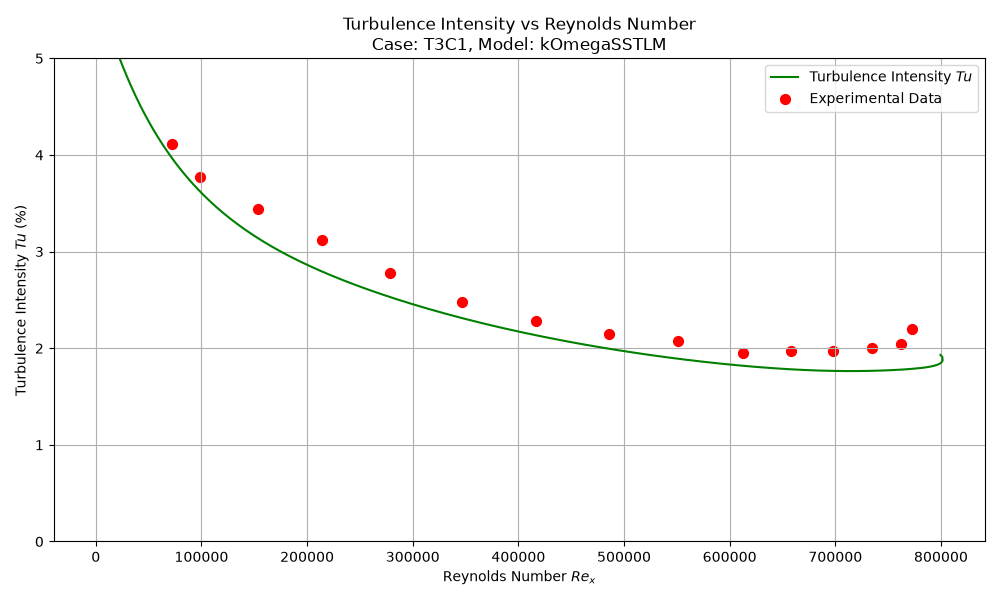

Turbulence intensity

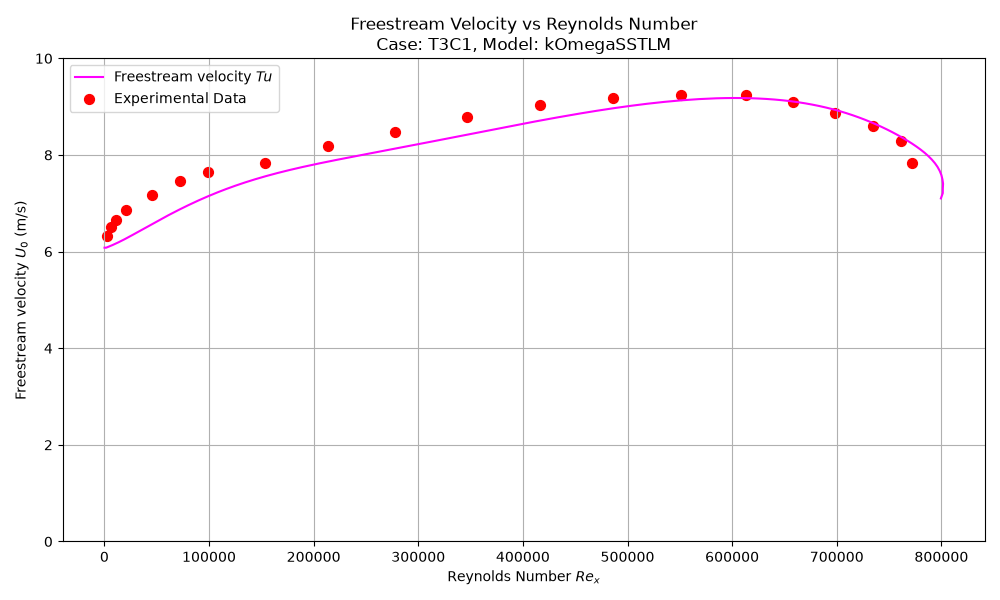

Freestream velocity

T3C2 case

See description.

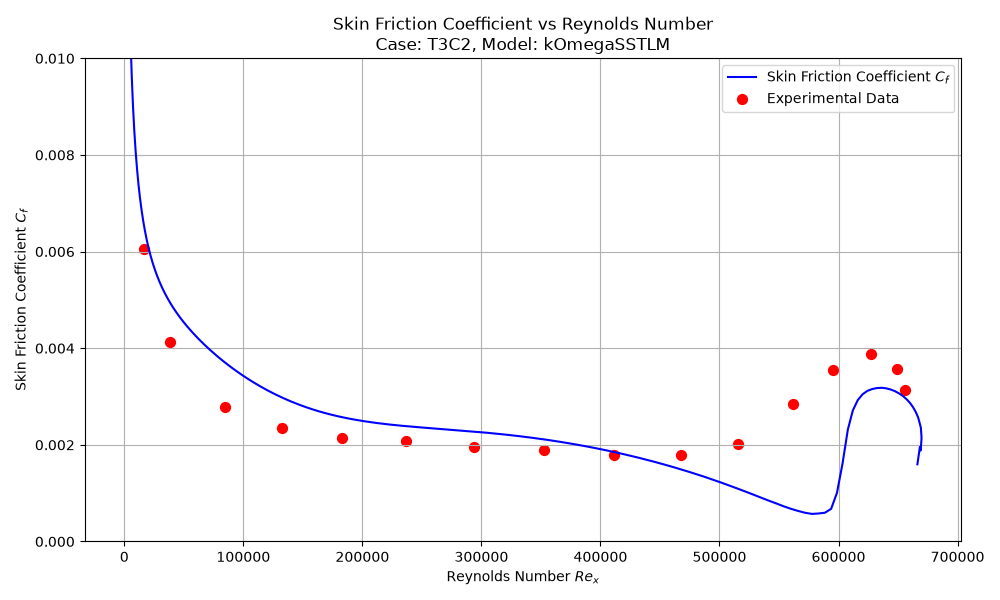

Skin friction coefficient

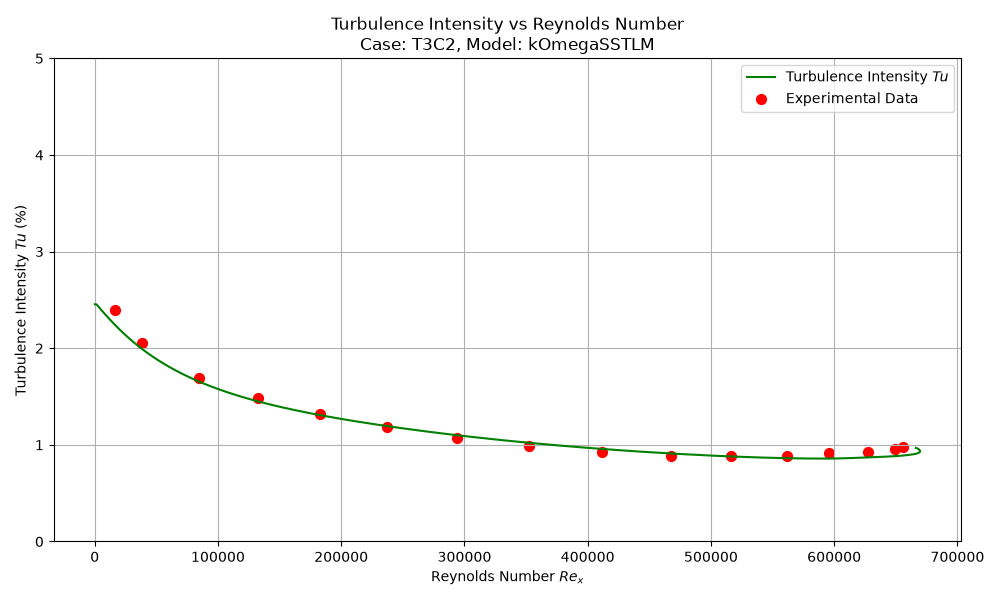

Turbulence intensity

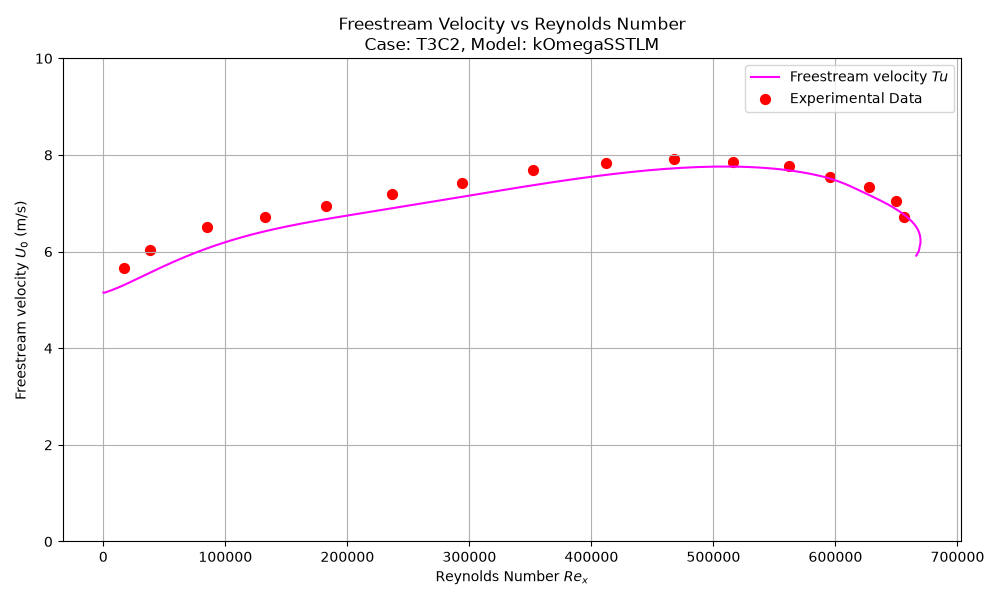

Freestream velocity

T3C3 case

See description.

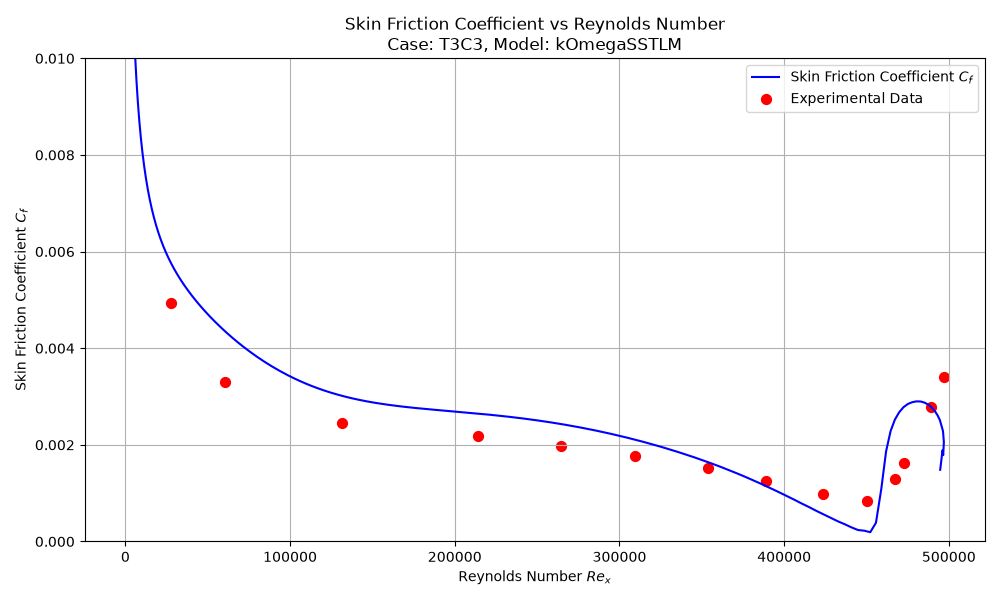

Skin friction coefficient

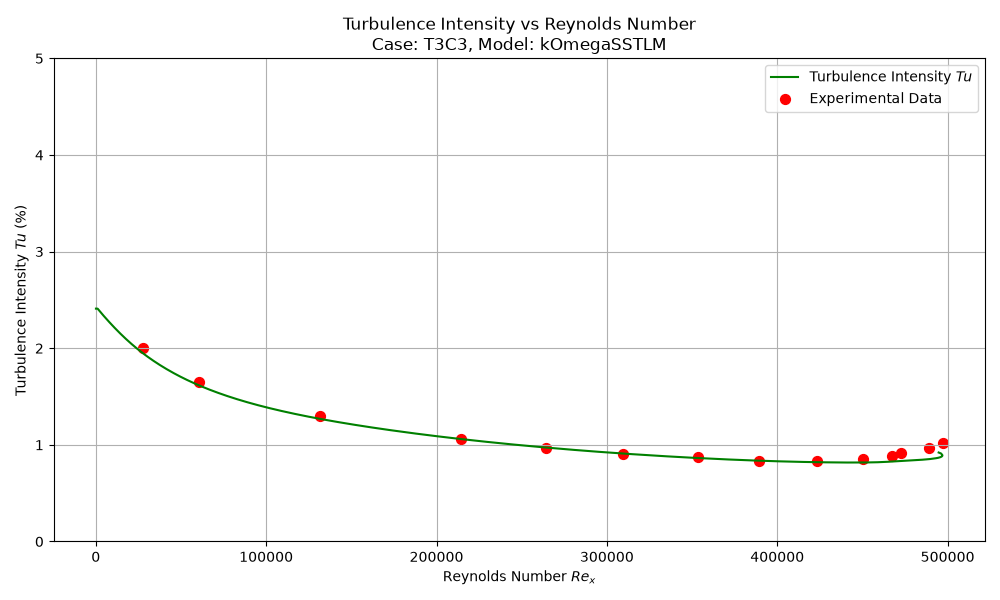

Turbulence intensity

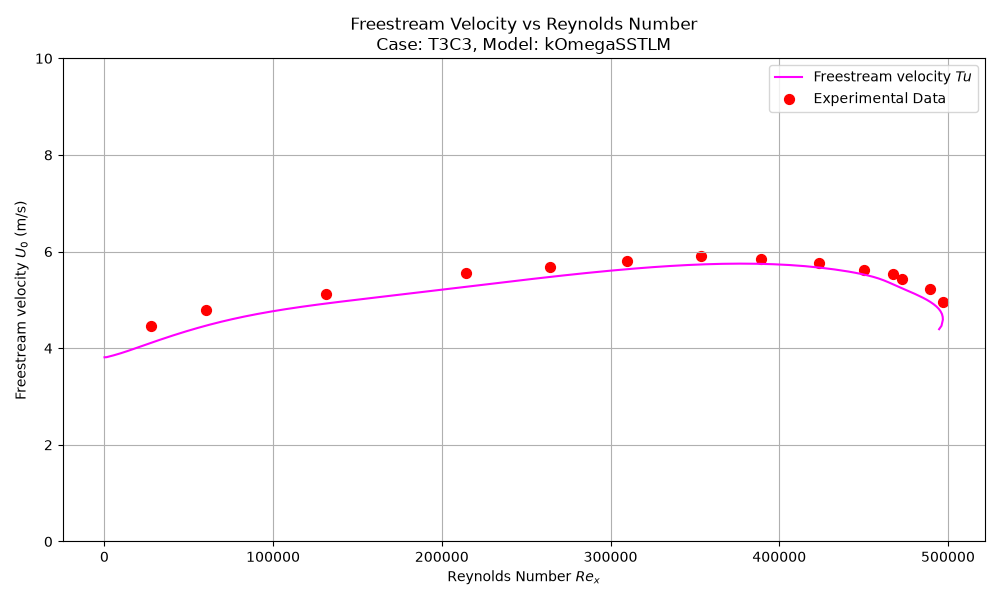

Freestream velocity

T3C4 case

See description.

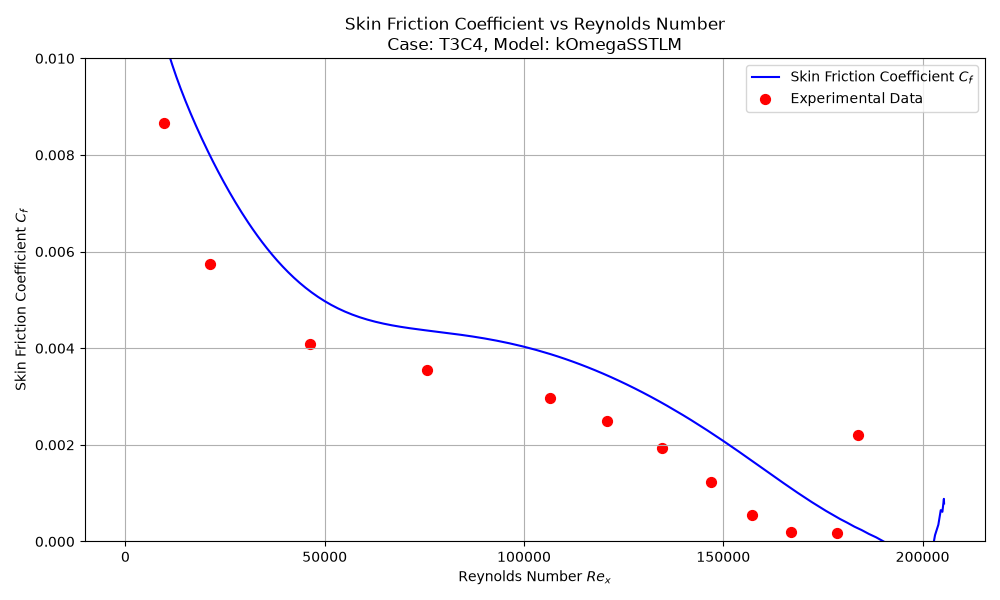

Skin friction coefficient

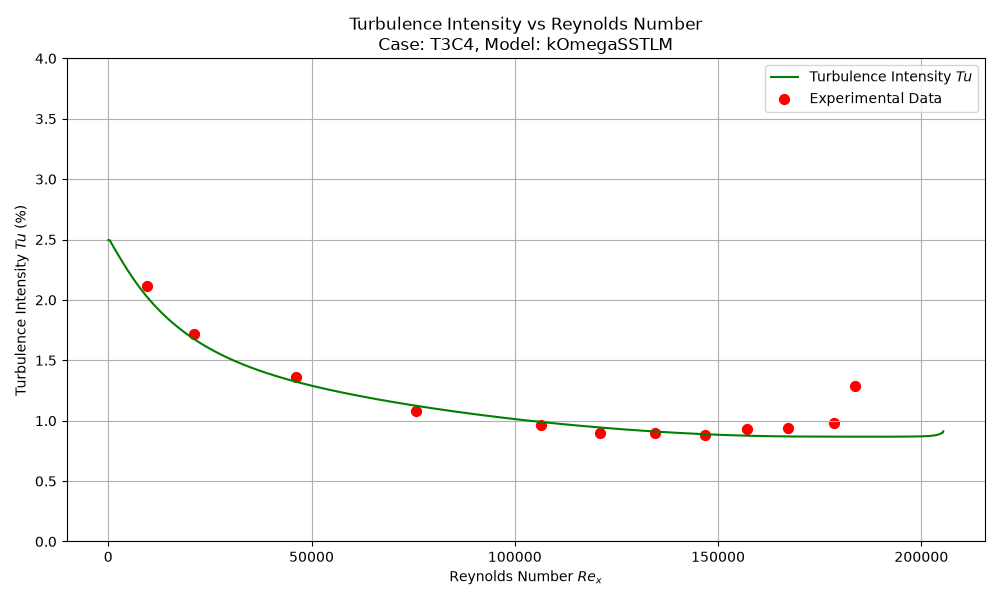

Turbulence intensity

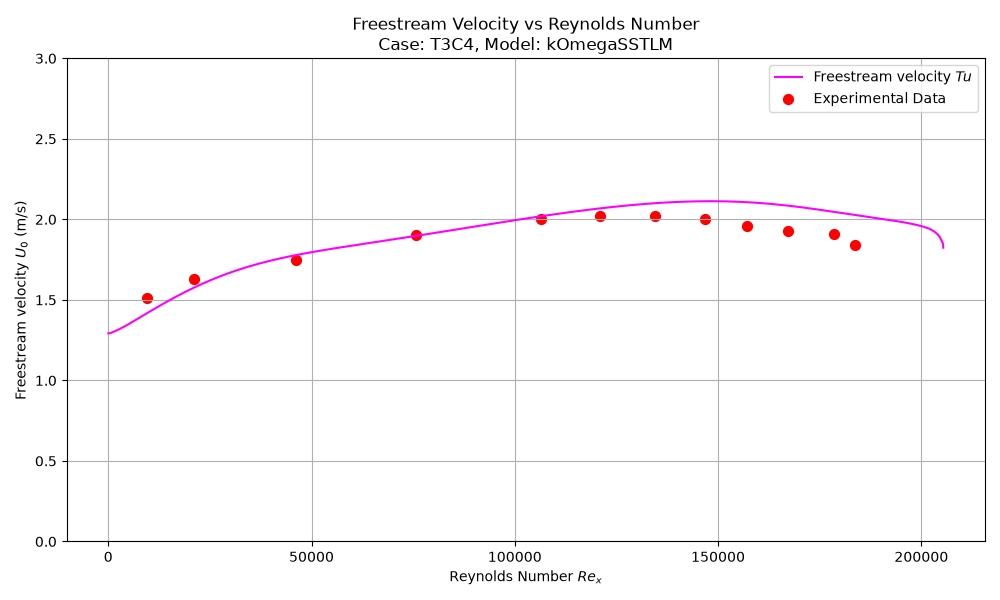

Freestream velocity

T3C5 case

See description.

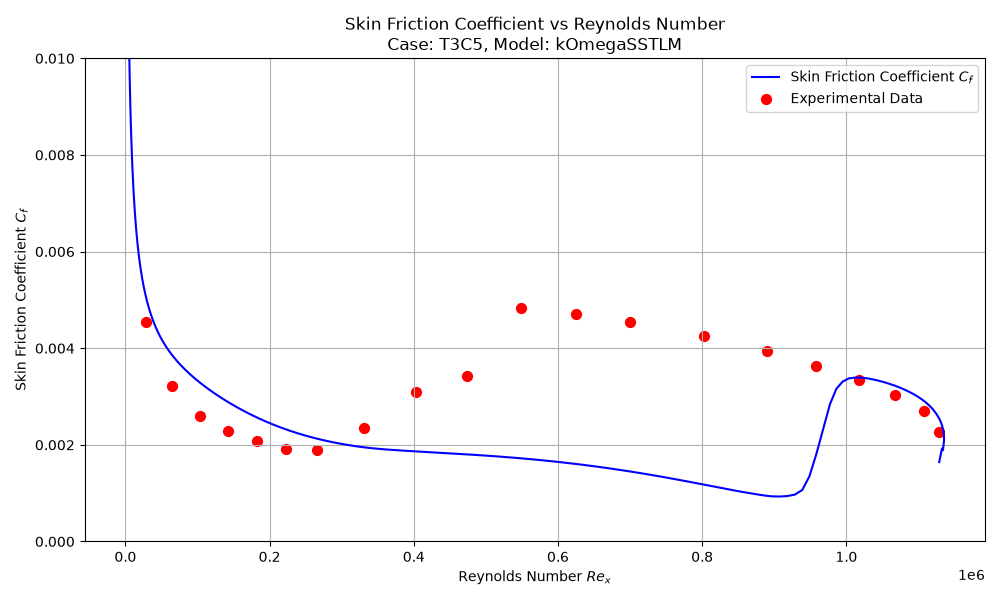

Skin friction coefficient

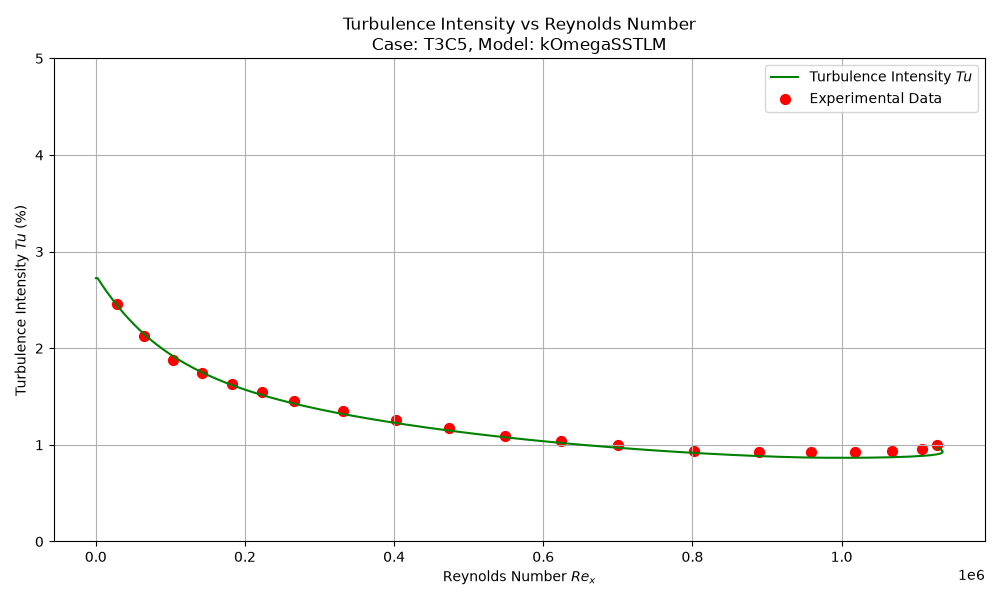

Turbulence intensity

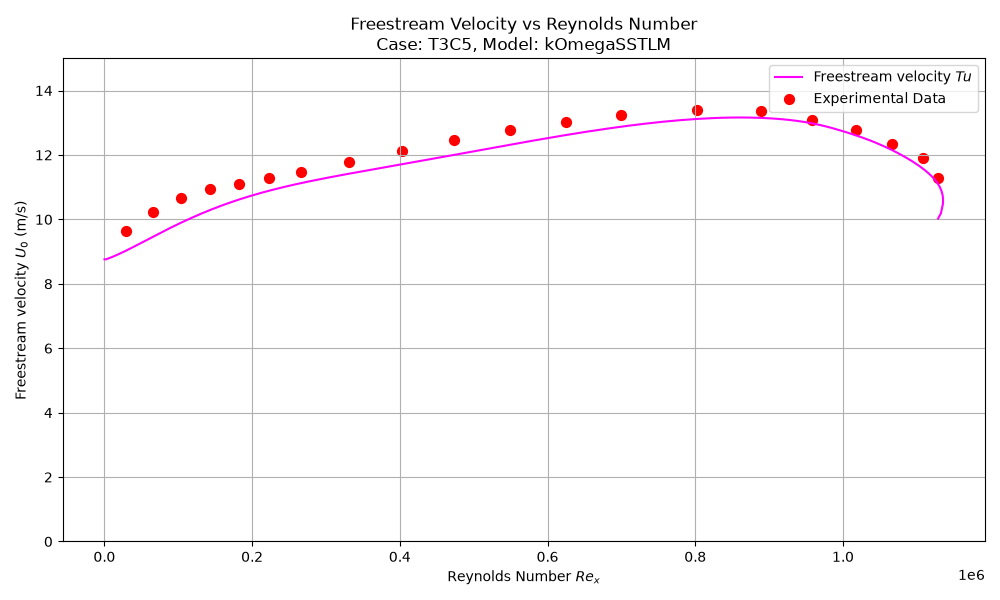

Freestream velocity

Hulgren and Volino cases

Re=300 000, highTI

See description.

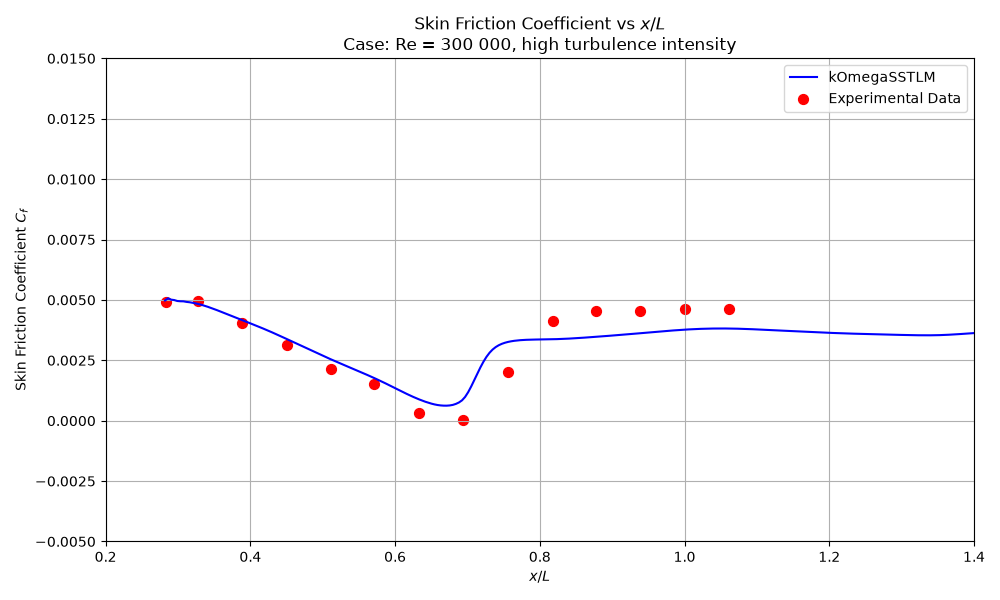

Skin friction coefficient

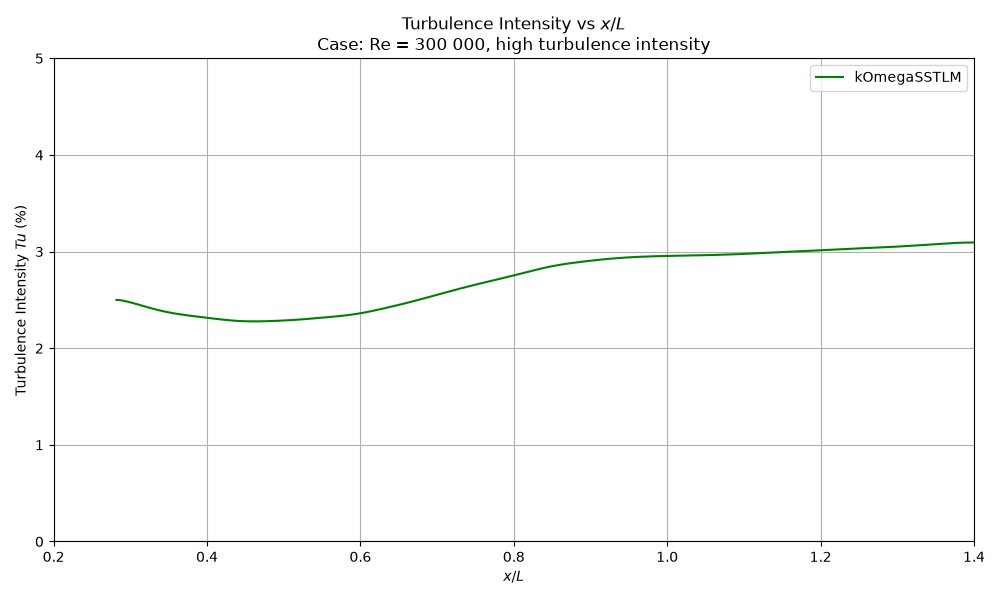

Turbulence intensity

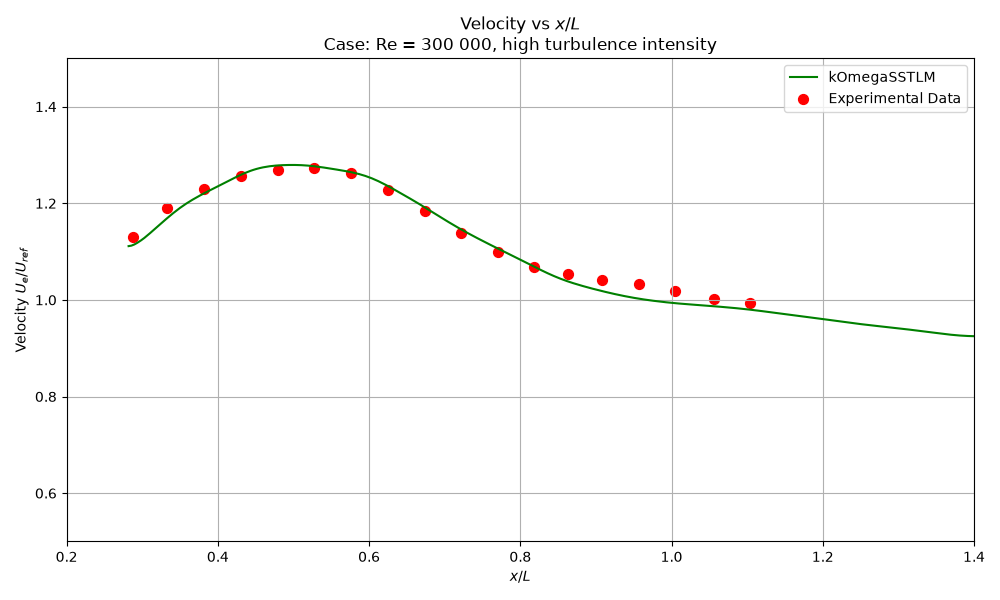

External velocity

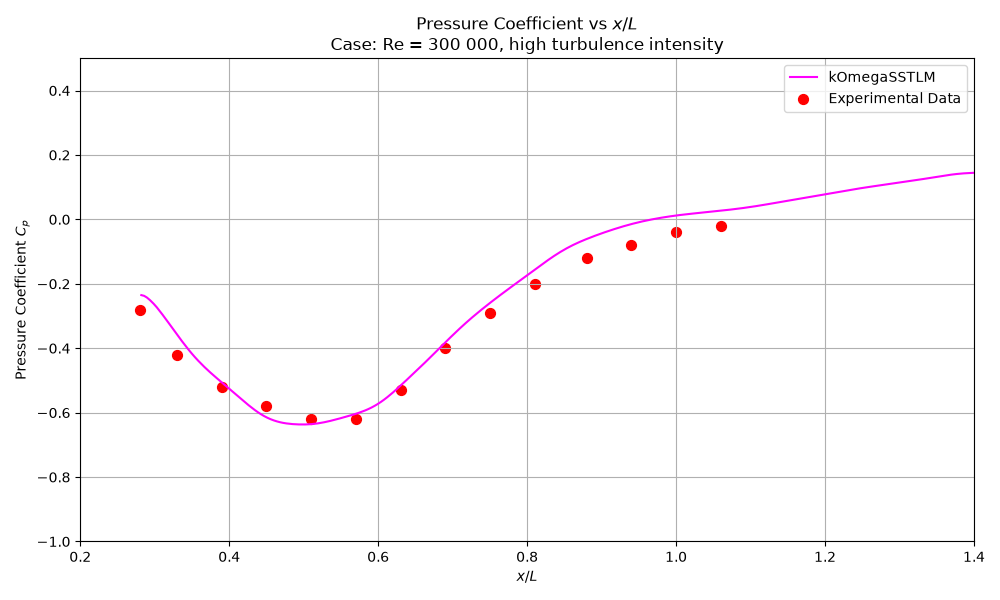

Pressure coefficient

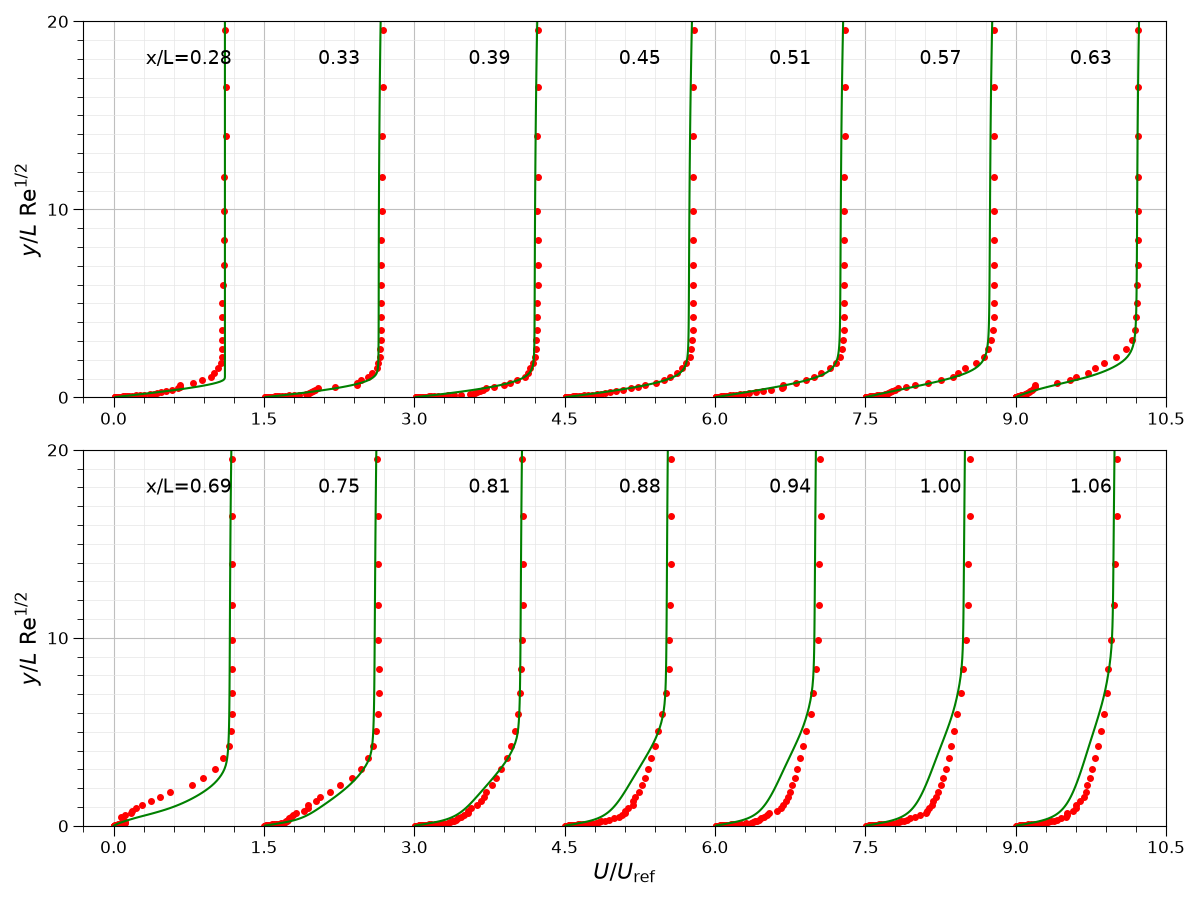

Velocity profiles

Re=300 000, lowTI

See description.

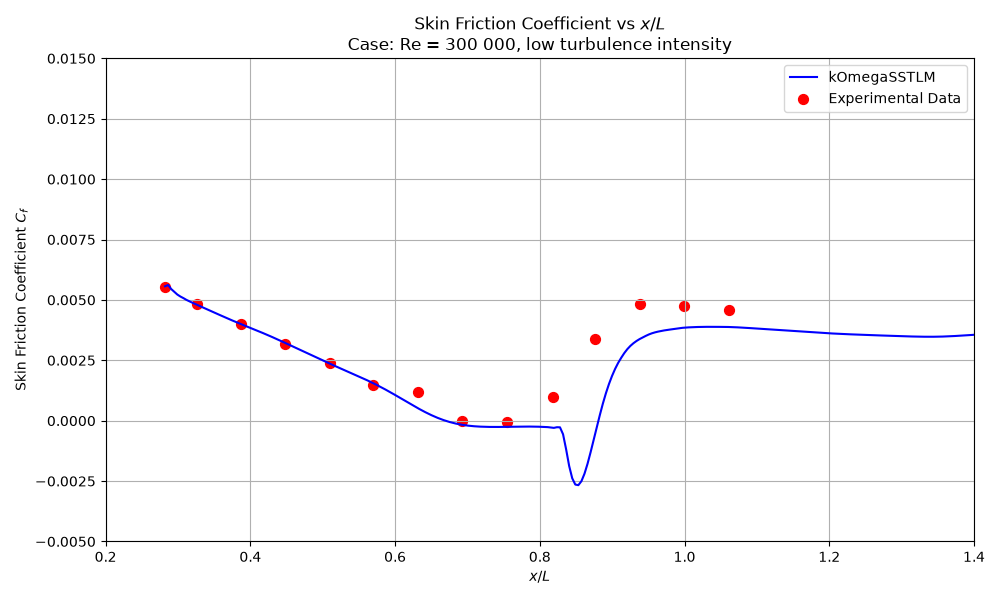

Skin friction coefficient

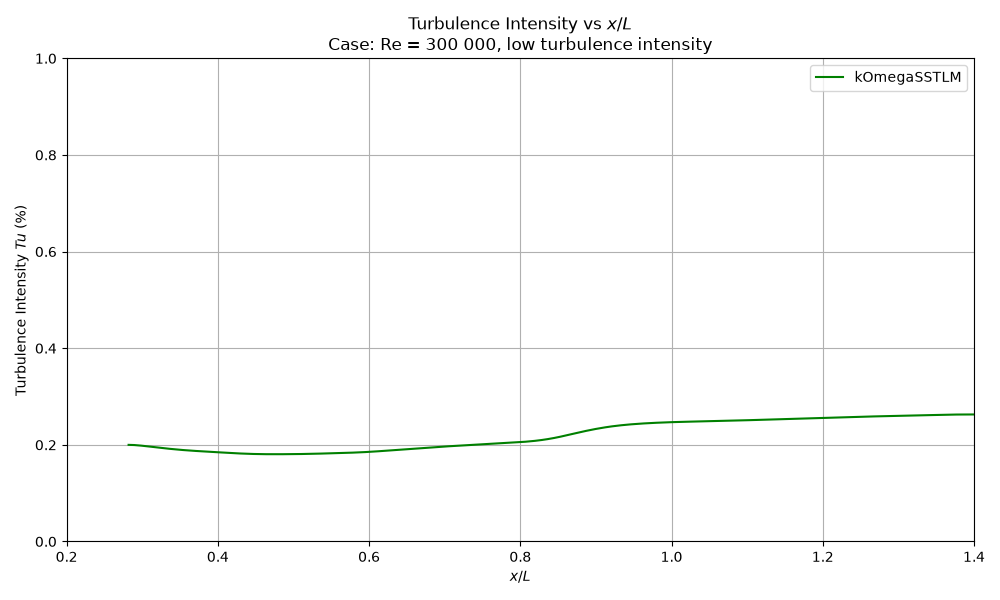

Turbulence intensity

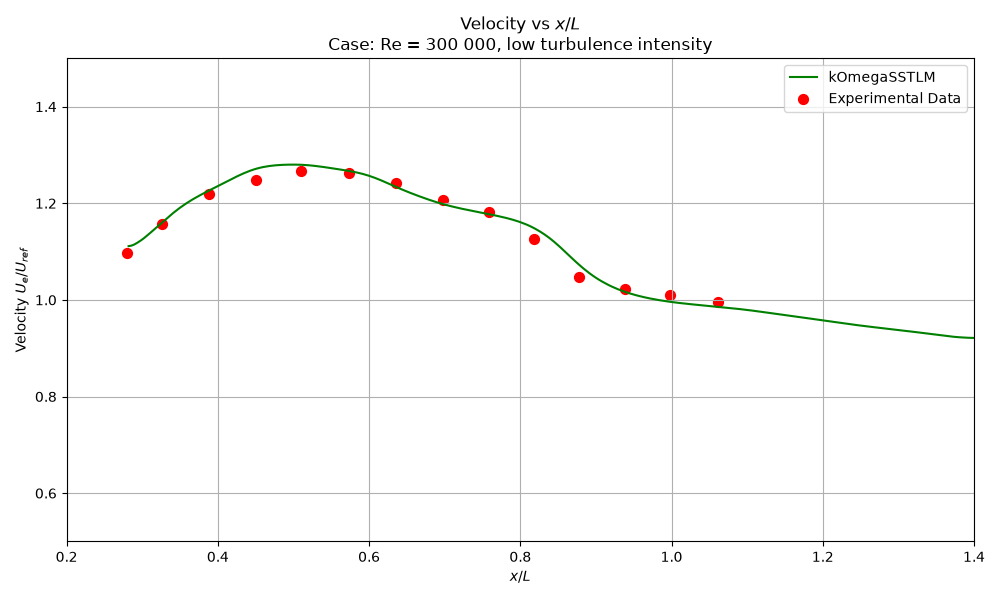

External velocity

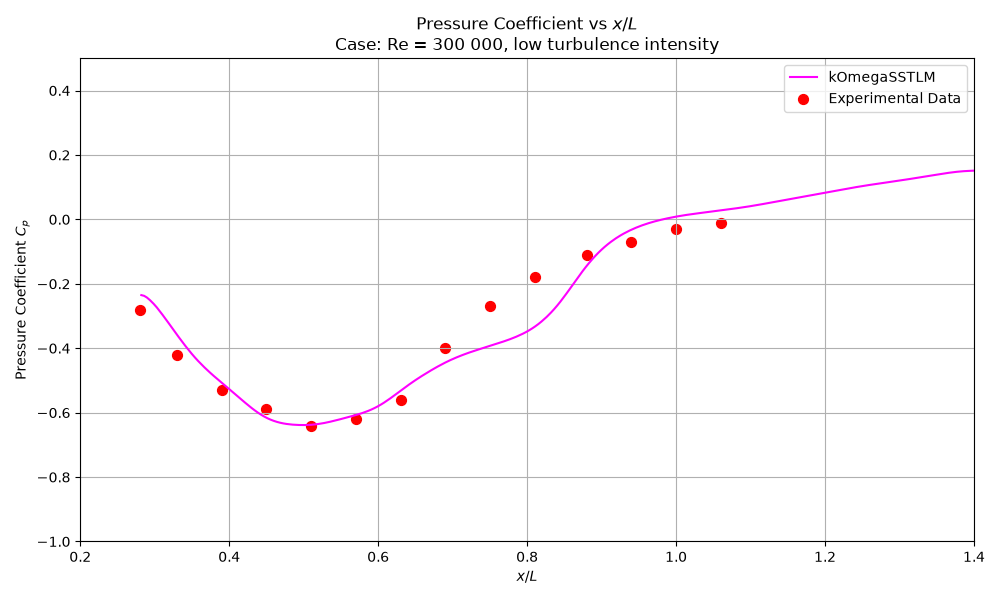

Pressure coefficient

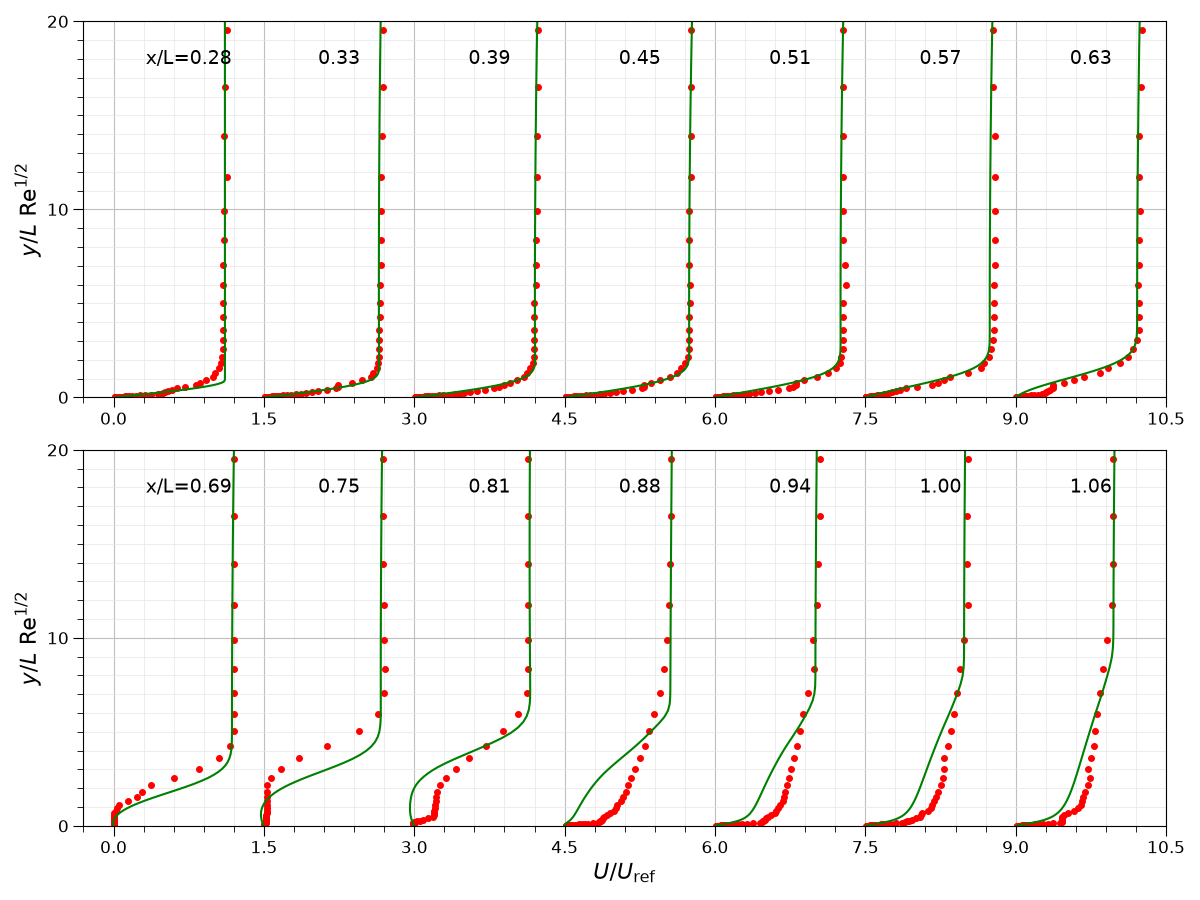

Velocity profiles

Re=50 000, highTI

See description.

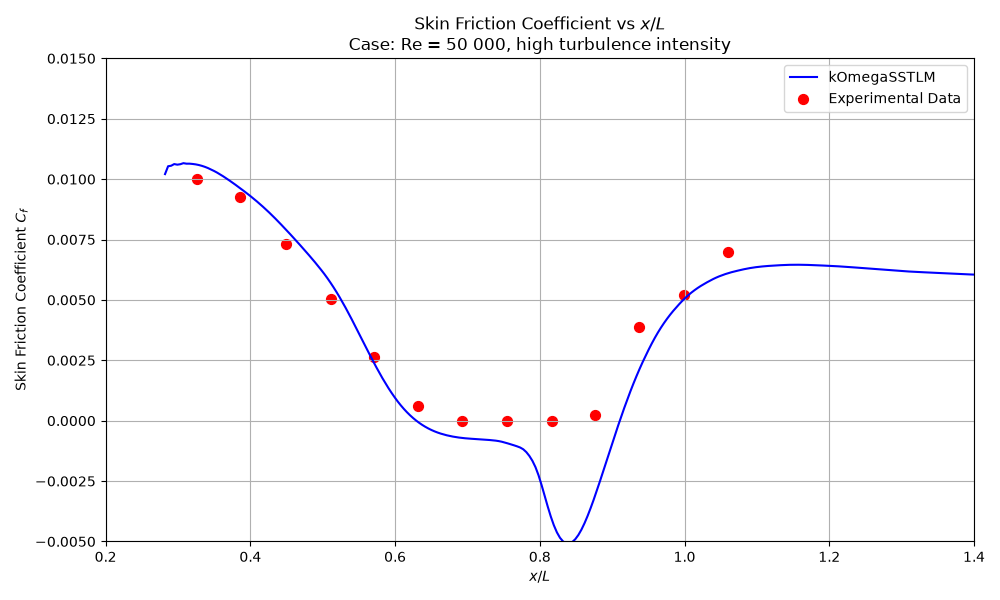

Skin friction coefficient

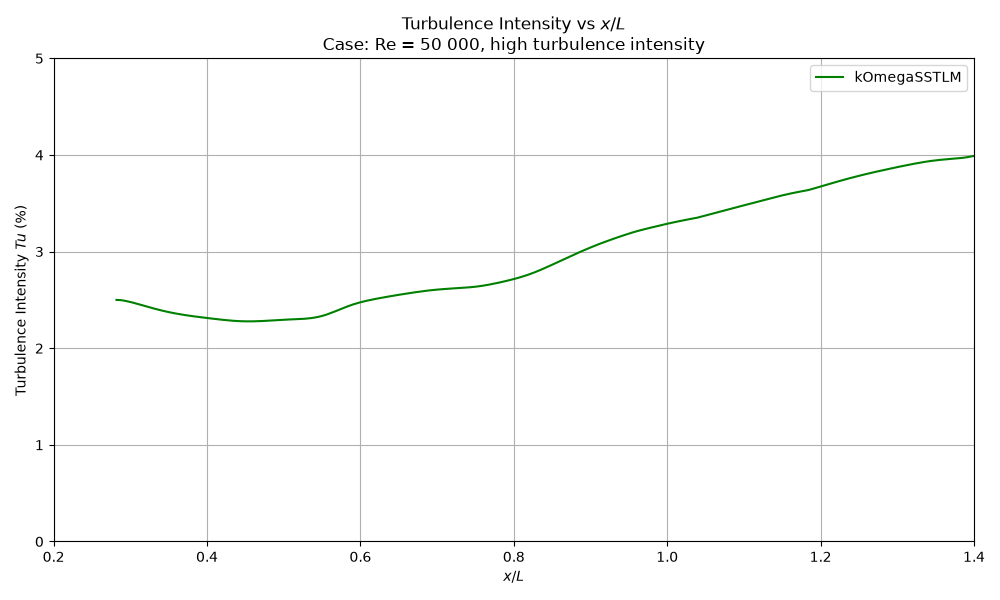

Turbulence intensity

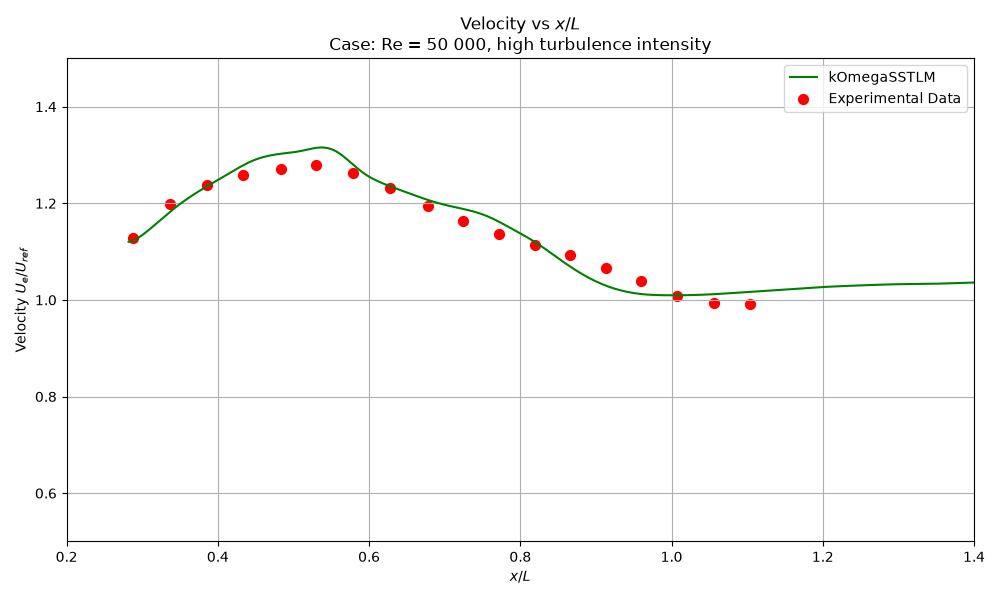

External velocity

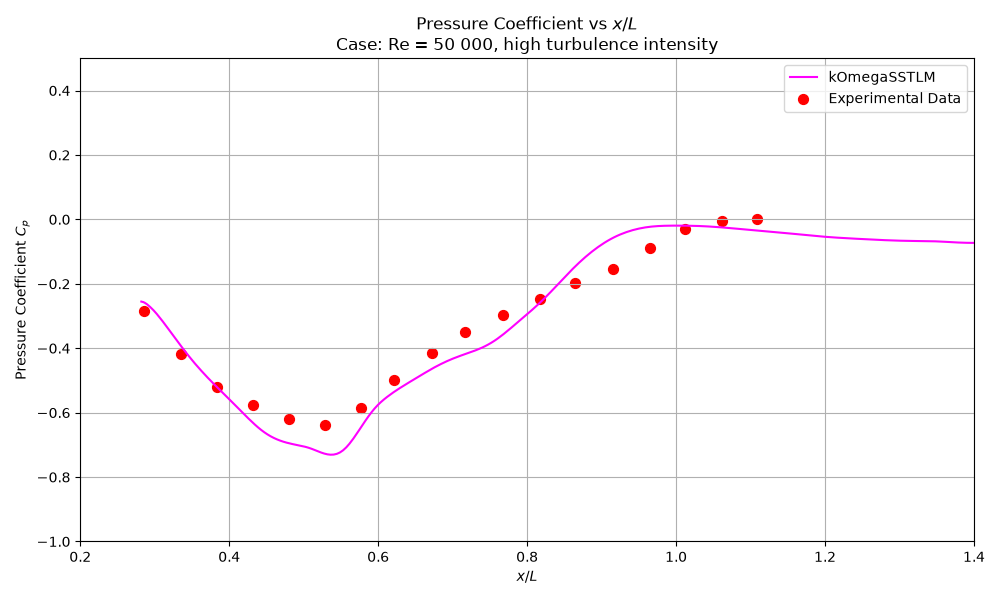

Pressure coefficient

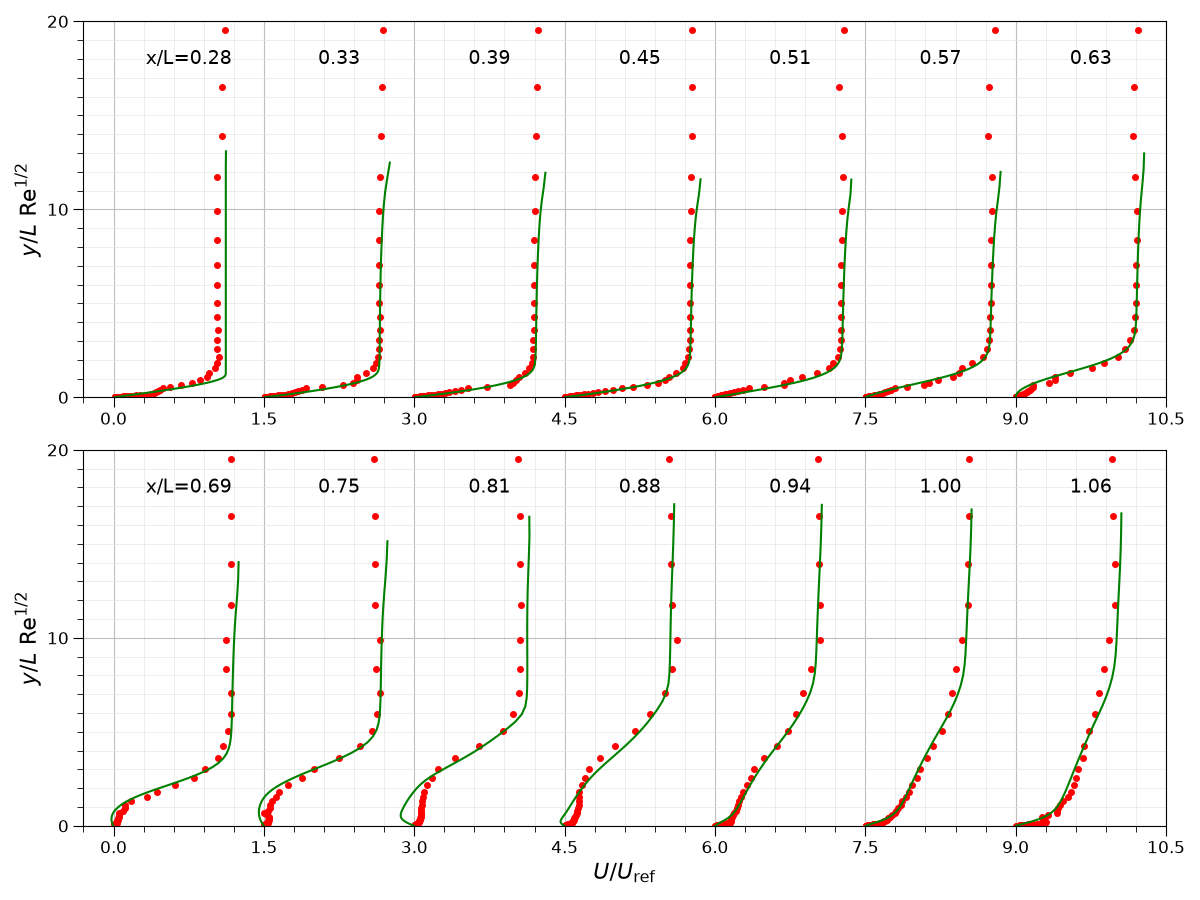

Velocity profiles

Re=50 000, lowTI

See description.

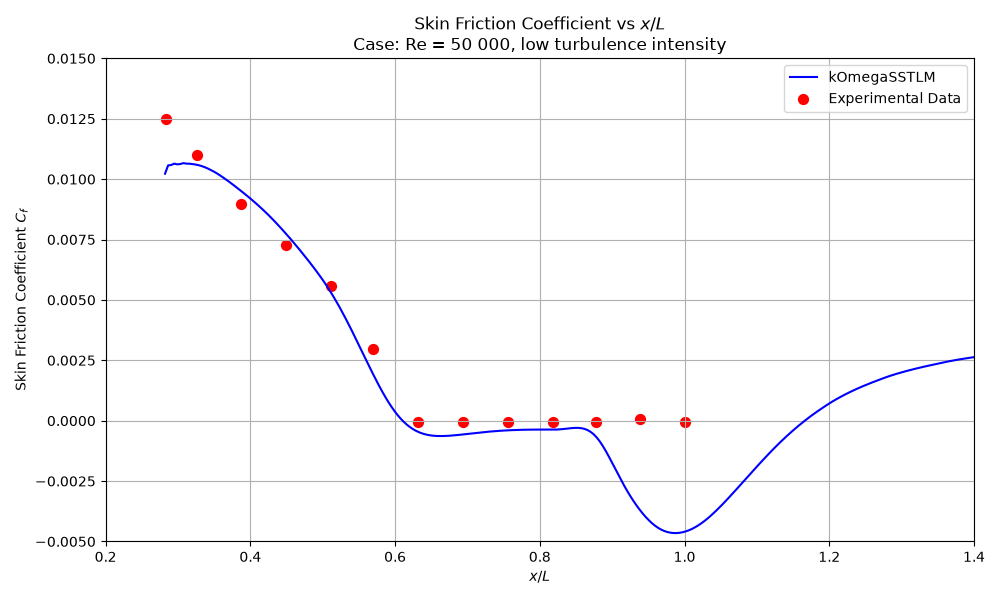

Skin friction coefficient

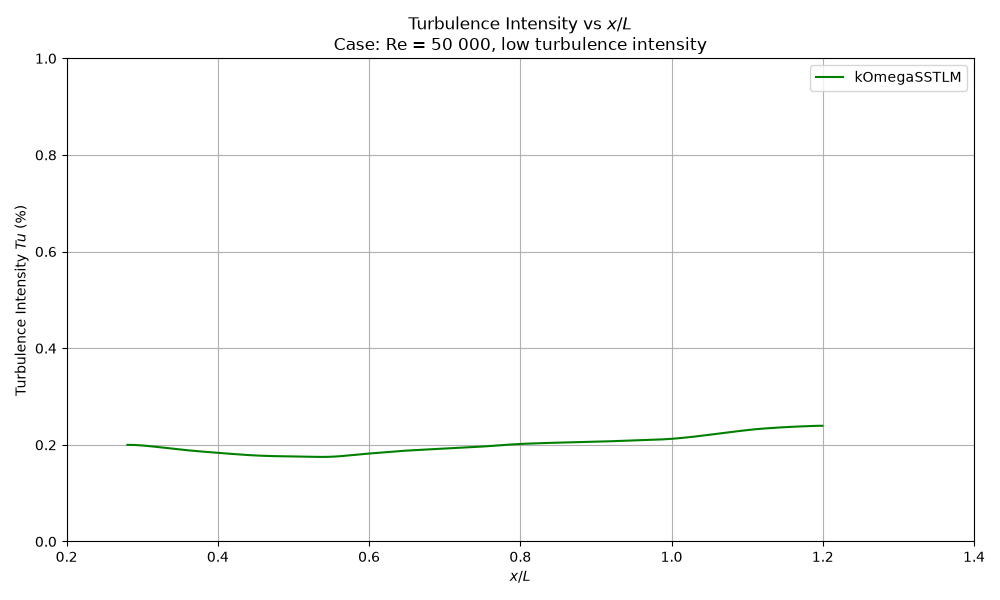

Turbulence intensity

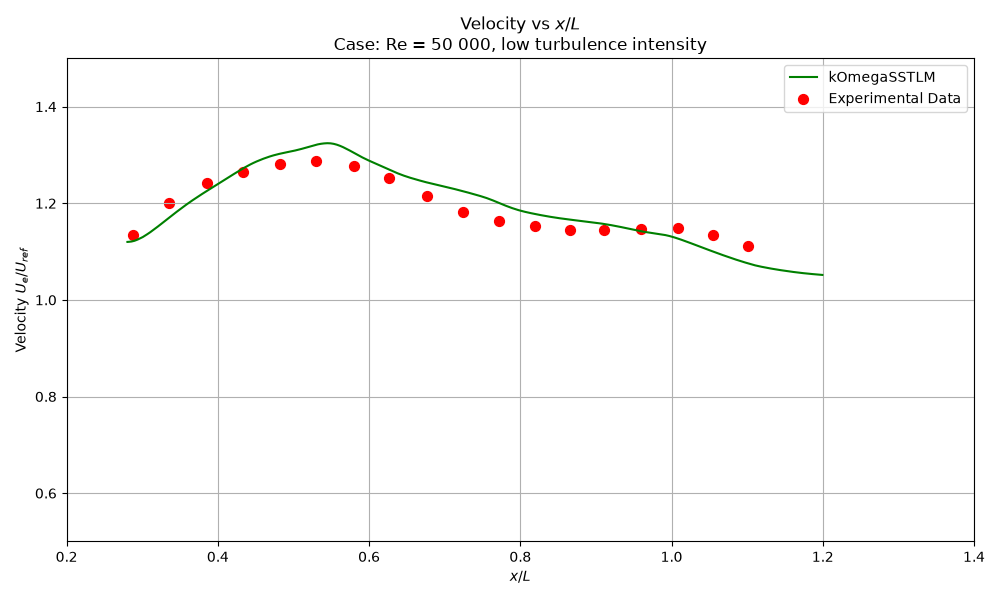

External velocity

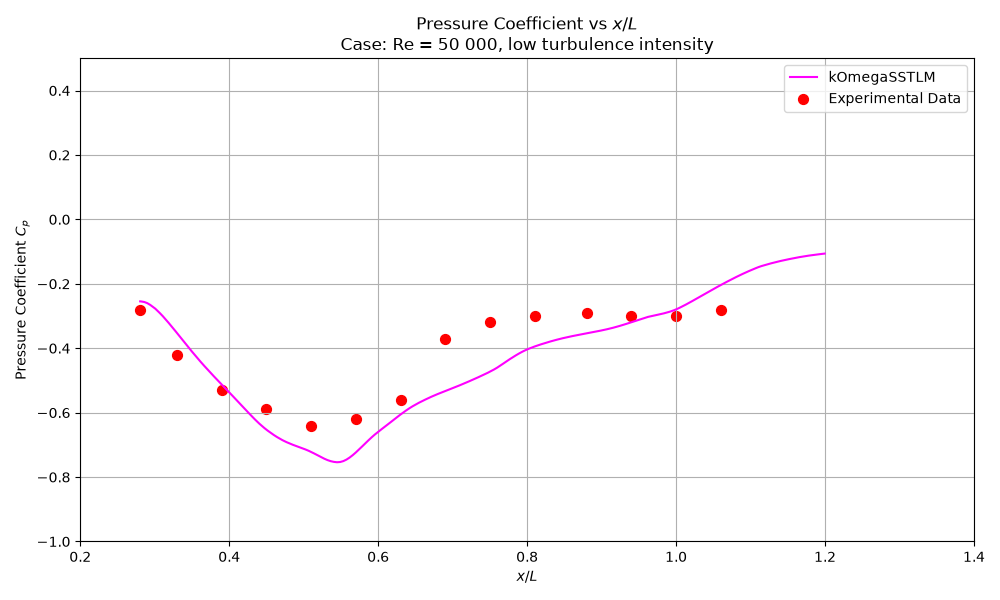

Pressure coefficient

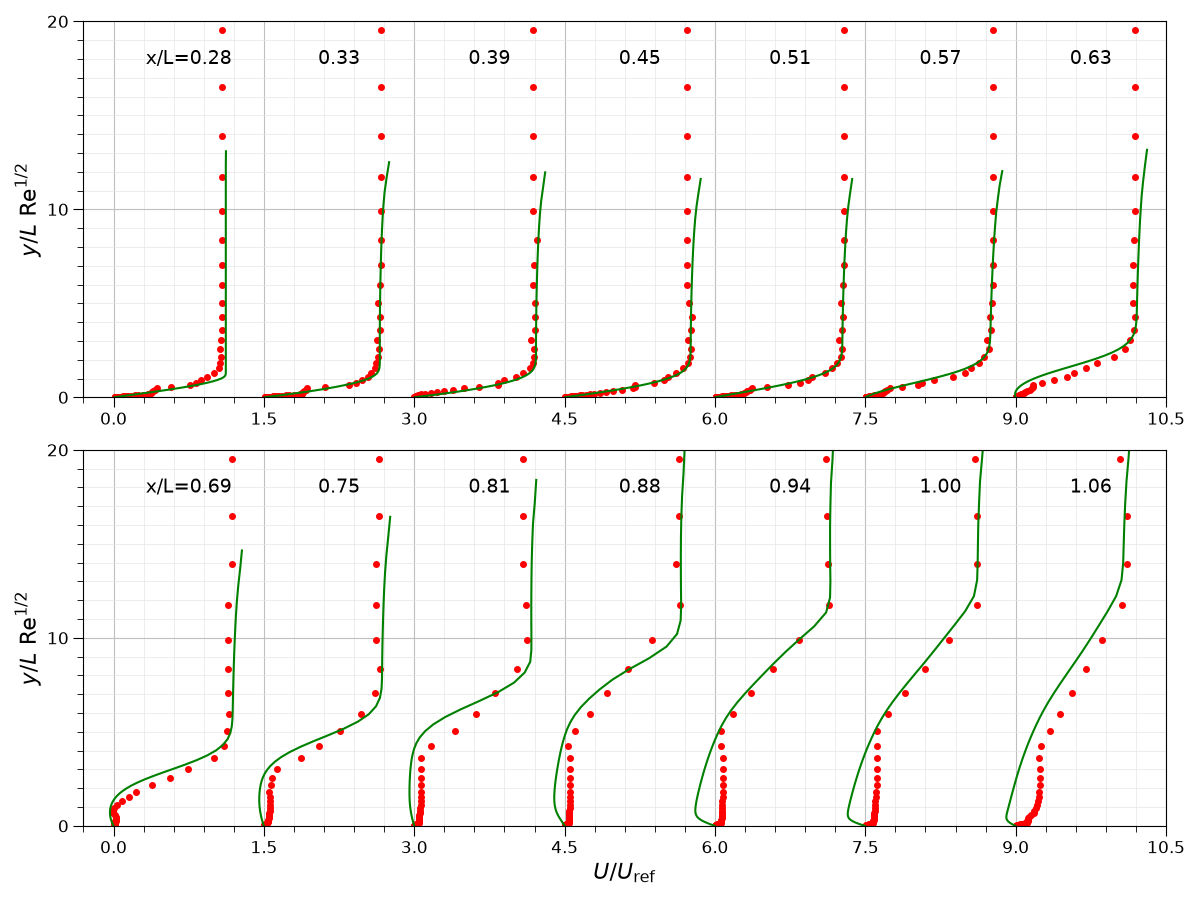

Velocity profiles

References

Langtry, Robin Blair, and Florian R. Menter. 2009. “Correlation-Based Transition Modeling for Unstructured Parallelized Computational Fluid Dynamics Codes.” AIAA Journal 47: 2894–906. https://doi.org/10.2514/1.42362.
